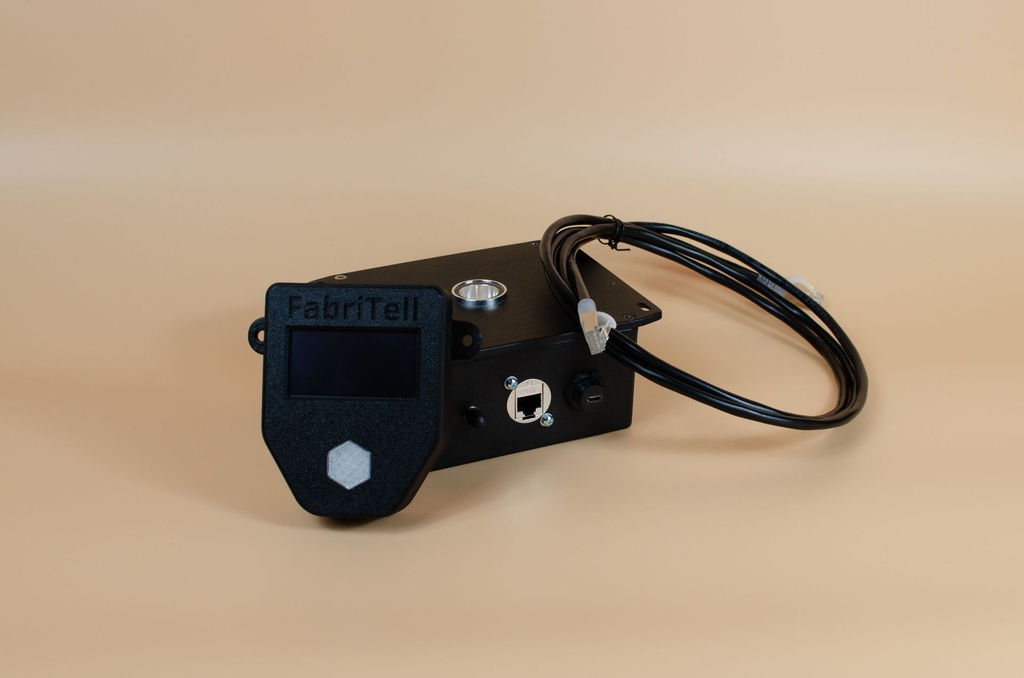

FabriTell (Bench)
Bench-mountable NIR textile identification instrument
Our FabriTell Bench can instantly identify textile items, enabling their rapid sorting. Thanks to its shape, it can be mounted from underneath a bench and integrated into your sorting process.
Technical specifications
Operating principle: reflectance NIR spectroscopy, 1550-1950 nm
Algorithms & library: state-of-the-art machine learning / AI algorithms included, no additional setup or fees
Identification speed: < 1 s
Materials identified: cotton, polyester, elastane, acrylic, wool, acetate, polyamide (nylon) and + 17 2-component blends of these materials
Accuracy: typically ±10% for most blends, ±5% for pure materials, please do get in touch for further details.
Power consumption: 5W, supplied via the included USB adapter with international plugs
Connectivity: Wi-Fi (2.4 GHz) for updates & connection to our cloud, Bluetooth 4.0 for connecting to our app
App is included, as well as 10000-spectra cloud data storage and an open-source communication library!
NIR analysis is very quick and typically no sample preparation is needed. However, the accuracy of this technique is lower than a full laboratory analysis of your sample.
You will need an electric drill and suitable drill bits (3 mm and 10 mm) to make suitable openings into your furniture for mounting. If you wish to mount it on a wooden bench, you will also need to make a cutout using an (electric) hacksaw. All required fasteners as well as a screwdriver are included with the device.
Please note that no furniture (such as a bench) is included - this listing and price is for a bench-mountable instrument, not a full sorting station. We're able to provide these - please do get in touch!
